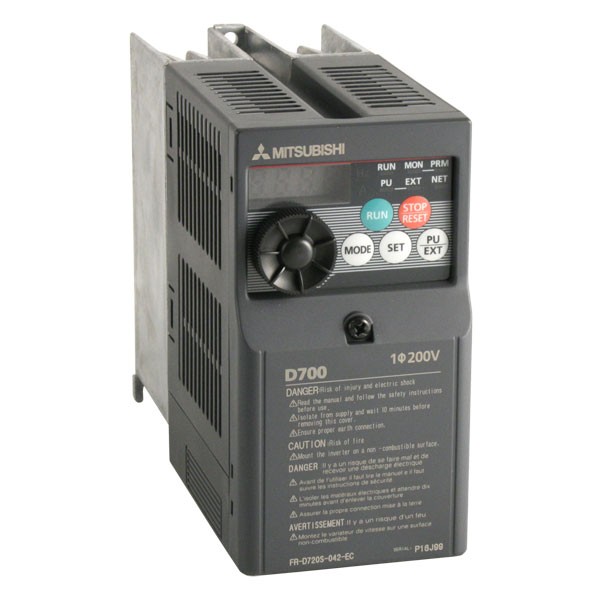

MITSUBISHI ELECTRIC D720S
"HIGH PERFORMANCE" SINGLE-TO-THREE-PHASE INVERTERS
For serious machining duty 240V 1-phase input, 220V 3-phase output, for you to run a dual-voltage (Delta wired) three phase motor off your 1-phase supply.
Six sizes from 0.1kW (0.12hp) to 2.2kW(3hp). CNC COMPATIBLE
Specifications:
Input Voltage: 1-phase, 200-240V AC (-15%, +10%) 50/60Hz
Output Voltage: 3-phase, 0-220V AC, 0-120Hz.
Overload Capacity: 150% - 60 seconds overload, 200% - 3 seconds overload.
Torque: 150% Starting Torque at 1Hz, 300% at 5Hz.
Built-in user keypad, display and Digital Speed Dial.
Unique Integrated Emergency Stop Function.
Advanced Torque Vector control for optimum performance.
Fully CE & UL Approved. RoSH Compliant.
Models and Prices:
|
Mitsubishi Model N/o: FR-D720S- |
008 |
014 |
025 |
042 |
070 |
0100 |
|
Prices (exc VAT) |
£111 |
£121 |
£132.50 |
£154 |
£188 |
£264.50 |
|
Motor Capacity (Watts) |
0.1kW |
0.2kW |
0.4kW |
0.75kW |
1.5kW |
2.2kW |
|
Output Current (Amps) |
0.8A |
1.4A |
2.5A |
4.2A |
7.0A |
10.0A |
|
Width (mm) |
68 |
68 |
68 |
68 |
108 |
140 |
|
Height (mm) |
128 |
128 |
128 |
128 |
128 |
150 |
|
Depth (mm) |
80.5 |
80.5 |
142 |
162 |
155 |
155 |
|
Cooling Fan fitted? |
No |
No |
No |
No |
Yes |
Yes |
|
Internal Protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
|
Approvals |
CE/ UL |
CE/ UL |
CE/ UL |
CE/ UL |
CE/ UL |
CE/ UL |
Prices above are subject to VAT. Prices correct as of January 2015.
Delivery to anywhere in the UK mainland is £10.
We accept payment by all leading credit / debit cards, cheque with order, and Paypal.
For online ordering - visit our new E-Commerce Webshop; http://www.newton-tesla.co.uk/index.php?route=product/category&path=64_75_108
