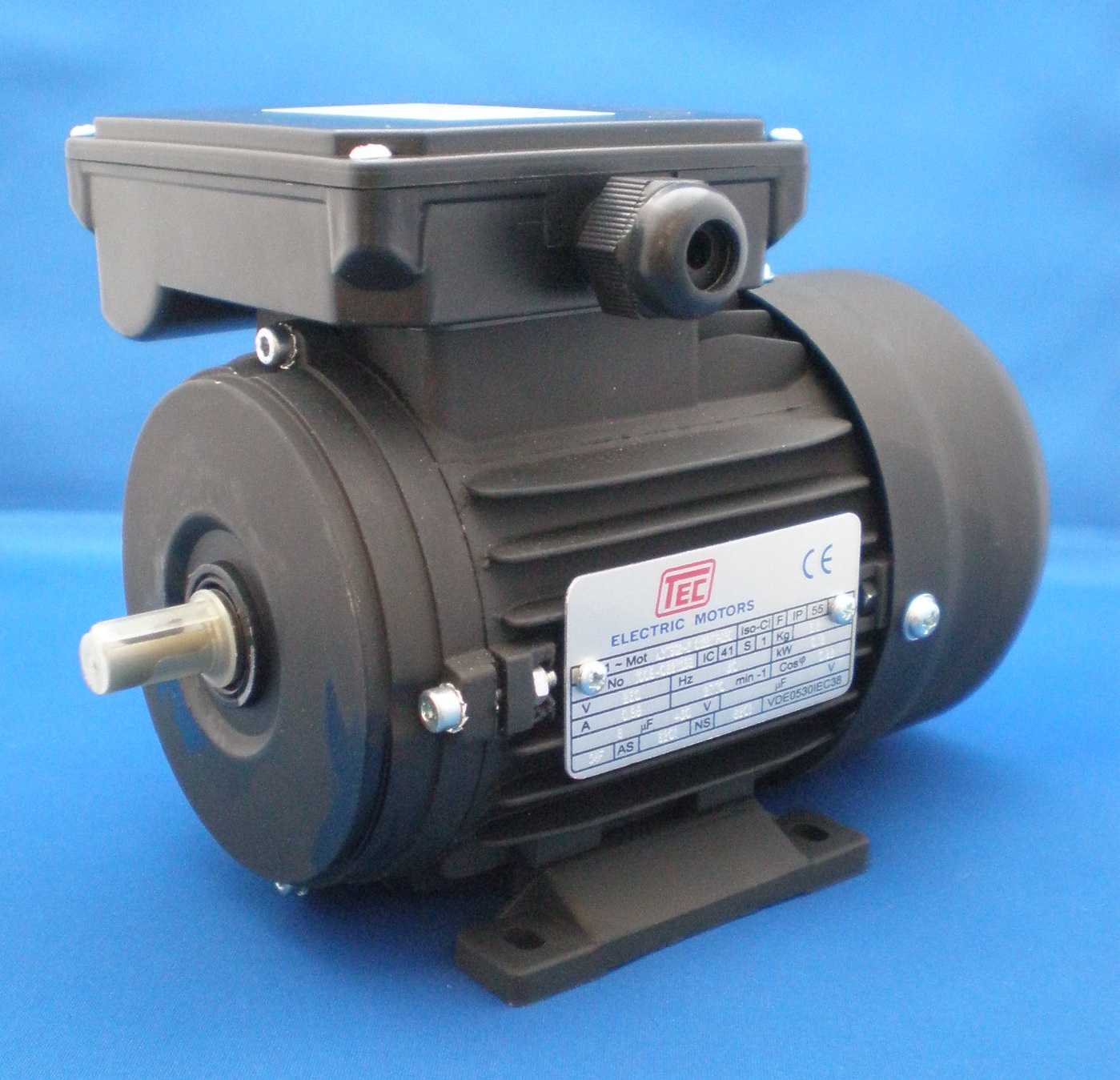

240V AC SINGLE-PHASE METRIC MOTORS



HIGH QUALITY AT LOW PRICES!!

Mounting options available, including; Standard  Metric B3 Foot-Mounted, Metric B5 Flanged, and B14 Face mount.


PRICES:

PERMANENT - CAPACITOR

KW   HP     Frame     2 Pole B3(Foot)       2 Pole B5/B14(Flange)    Frame    4 Pole B3 (Foot)     4 Pole B5/B14 (Flange)
0.25  0.33      D63                £90.75                    £97.10                 D71               £97.77                      £104.61
0.37  0.5        D71                £95.60                    £75.00                 D71               £105.22                    £112.60
0.55  0.75      D71                £102.32                  £102.28               D80               £140.93                     £150.80
0.75  1.0        D80                £142.12                  £109.50               D80               £153.80                     £164.56
1.1    1.5        D80                £150.32                  £152.08               D90S             £201.32                     £215.42
1.5    2.0        D90S              £196.50                  £160.84               D90L             £240.07                     £257.96
2.2    3.0        D90L              £231.55                  £247.62               -                    £286.22                     £306.24


CAPACITOR START / CAPACITOR - RUN (CAP-CAP) - FOR HIGHER STARTING LOAD APPLICATIONS.

KW  HP       Frame     2 Pole B3(Foot)     2 Pole B5/ B14(Flange)    Frame   4 Pole B3 (Foot)    4 Pole B5 B14 Flange 0.25  0.33       D63              P.O.A.                     P.O.A.                   D71              £102.52                  £109.71
0.37  0.5         D71              £104.69                   £112.05                 D71              £114.10                  £122.08
0.55  0.75       D71              £114.35                   £122.34                 D80              £149.29                  £159.74
0.75  1.0         D80              £146.63                   £156.90                 D80              £161.72                  £173.05
1.1    1.5         D80              £165.05                   £176.59                 D90S            £199.14                  £213.09
1.5    2.0         D90S            £222.53                   £238.11                 D90L            £241.23                  £258.14
2.2    3.0         D90L            £243.89                   £260.96                 D100L           £298.23                  £302.35
3       4.0         D100L          £275.61                   £294.88                 D100L           £350.70                  £377.32
4+     5.5+         -                 P.O.A.                    P.O.A.                    P.O.A.          P.O.A.                    P.O.A.



Prices subject to VAT and Delivery costs.

Discounts available on multiple purchases.

Unlike many of the competition, our engineers have extensive knowledge on which motor kW and frame size are required for all the leading makes and models of lathes, milling machines, and other related machine tools.
We will ensure that you get the correct specification motor to suit your machine.



Payment accepted by Paypal, Credit / Debit Card, or Cheque with Order.
